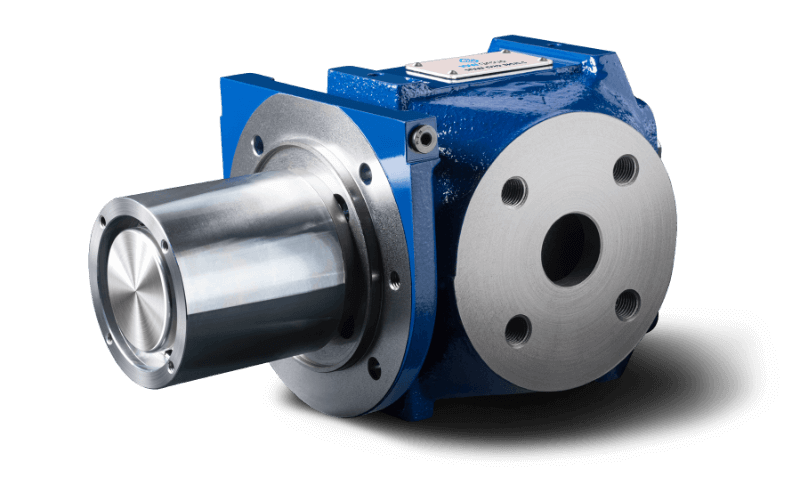

Magnaline 225 N1/L1
Ideal for flow volumes of 8-41 l/min (2-11 gpm)
Magnaline 225 N1/L1 - specifications
- IOW 225 N1/L1 has a flow volume of 8-41 l/min (2-11 gpm)
- Max differential pressure 16 Bar (232 psi)
- Pump connected to electric motor using a magnetic coupling, meaning there is no mechanical contact between pump and motor, and pumped liquid is fully enclosed within the pump
- Pressure relief valve installed internally to protect the pump
- 2 different strengths of magnetic coupling available, depending on the viscosity of liquid to be pumped
- Connections for steam tracing to heat the pumped liquid up and reduce viscosity
- 2 rotor leads available, depending on performance required
- Fluid viscosity: 1.4—1500 cSt.
- Fluid temperature:
-20 to +180°C (-4 to +356°F) - Max RPM: 3600
Download the datasheet for the IOW 225 N1/L1
Advantages
- Designed to endure a long, problem free operation
- Self lubricating
- Can be used for a number of different liquids
- Can be approved to a number of classification societies
- Pumped liquid is fully enclosed
- Same day dispatch on spares
- Environmentally friendly
- Use of an angle bracket aids mounting
Applications
- Supplying fuel and lubrication to diesel engines
- Transferring oil in refineries, tank farms and on board ships
- Used by big machines, hydraulic systems and transformer oils
- Used for lubrication of gears, hydro turbines, turbines powered by steam or gas and paper machines
