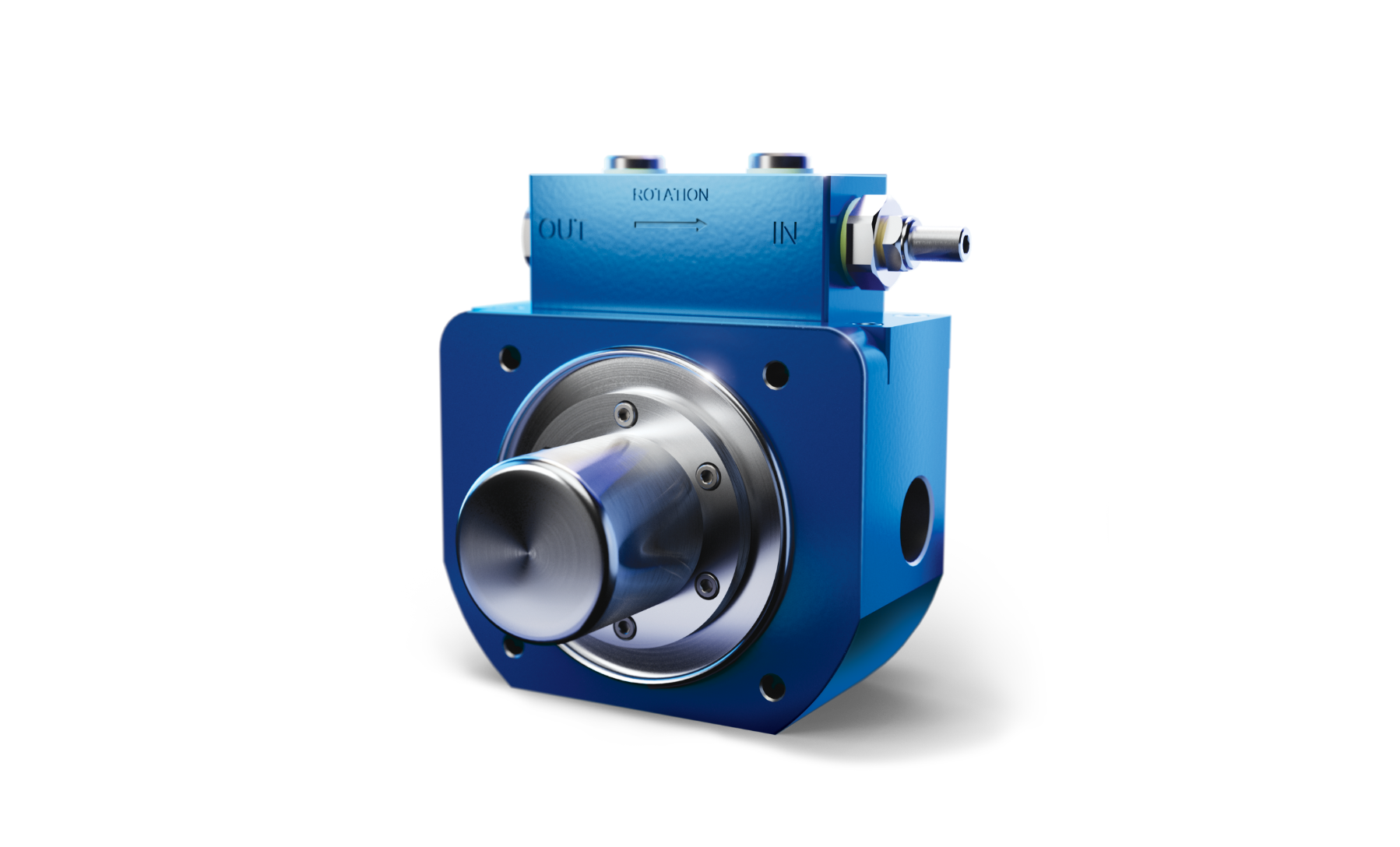

The 477 Magnaline self priming pump

Magnaline 477 N1

Has a maximum flow of 88 l/min (23.2 gpm)

Magnaline 477 N1 - specifications

  • IOW 477 N1 has a maximum flow of 88 l/min (23.2 gpm)
  • Pump connected to electric motor using a magnetic coupling, meaning there is no mechanical contact between pump and motor, and pumped liquid is fully enclosed within the pump
  • Max differential pressure 10 bar (145 psi)
  • Pressure relief valve installed internally to protect the pump
  • Pump is self priming, meaning the pump clears its passages of air and starts pumping liquid
  • The pump, even when equipped with an electric motor, has a very small footprint
  • Fluid temperature: -20 to +180°C (-4 to +356°F)

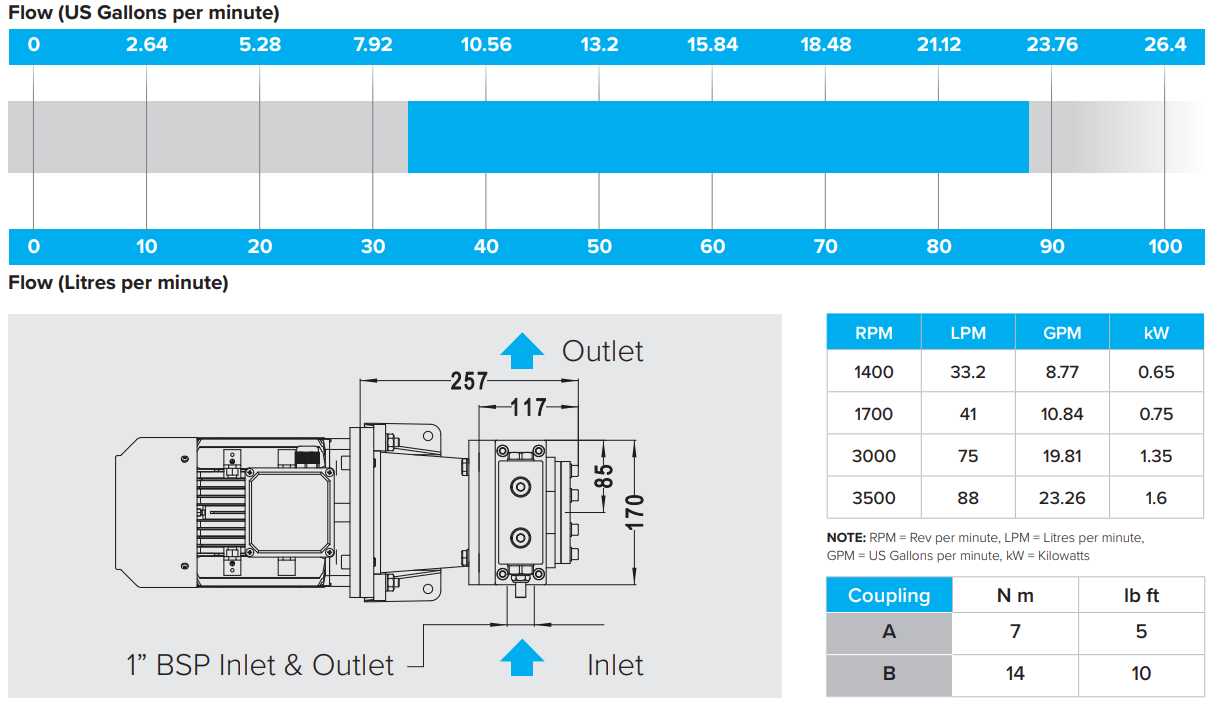

477 Magnaline Pump Information

Download the datasheet for the IOW 477 N1

IOW Group Magnaline 477 N1 Data Sheet

Advantages

  • Designed to endure long, problem free operation
  • Self lubricating
  • Can be used for a number of different liquids
  • Pump is self priming
  • Pumped liquid is fully enclosed
  • Same day dispatch on spares
  • Environmentally friendly
  • Small footprint

Applications

  • Lubrication Systems
  • Filtration Systems
  • Fueling
