Mechline 032 N2/L2
Ideal for flow volumes of 21.6 - 95.2 l/min (5.7 - 25.1 gpm)
Mechline 032 N2/L2 - specifications
- IOW 032 N2/L2 has a flow volume of 21.6 - 95.2 l/min (5.7 - 25.1 gpm)
- Max differential pressure 16 Bar (232 psi)
- Power transferred from electric motor via flexible coupling. Pumped fluid is enclosed in the pump with the use of a shaft seal
- Pressure relief valve installed internally to protect the pump
- 2 different shaft seals available, depending on the temperature of the pumped liquid
- 2 rotor leads available, depending on performance required
- Fluid viscosity:
L - 1.4 - 800 cSt, H - 1.4 - 3500 cSt. - Fluid temperature:
-20 to +155°C (-4 to +311°F) - Max RPM: 3600

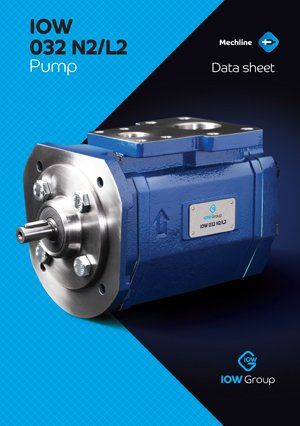

Download the datasheet for the IOW 032 N2/L2
Advantages
- Designed to endure a long, problem free operation
- Self lubricating
- Can be used for a number of different liquids
- Can be approved to a number of classification societies
- Same day dispatch on spares
- Environmentally friendly
- Use of an angle bracket aids mounting
Applications
- Supplying fuel and lubrication to diesel engines
- Transferring oil in refineries, tank farms and on board ships
- Used by big machines, hydraulic systems and transformer oils
- Used for lubrication of gears, hydro turbines, turbines powered by steam or gas and paper machines
